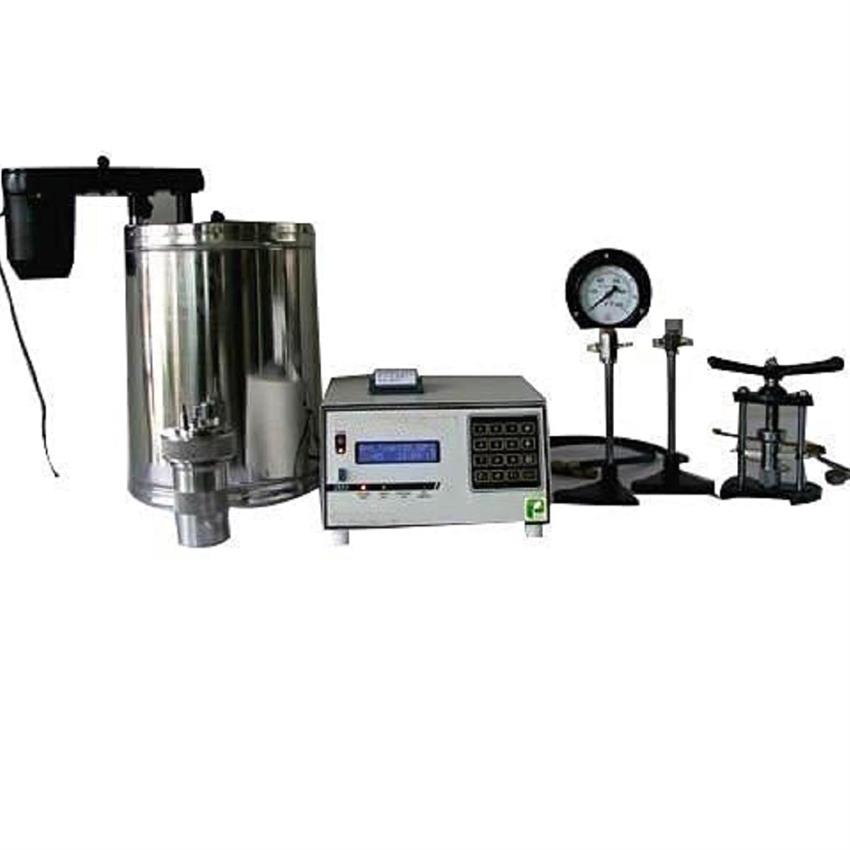

BCM-AC
Oxygen bomb calorimeters are widely used for the determination of calorific value in a variety of samples such as coal, lignite, coke, biomass, and light diesel oil (LDO). These instruments are essential for applications in industrial, commercial, and educational laboratories, including universities and research institutions.
The ARICO BCM-AC Bomb Calorimeters are among the most reliable, stable, and accurate calorimeters manufactured in India. They deliver performance comparable to other leading manufacturers, while being available at a significantly more economical cost. With full compliance to respective standards in this category
This Bomb calorimeter model offer unique Schrader valve free design to avoid frequent breakdown in combustion vessel, a high temperature measurement accuracy of 0.001°C, ensuring precise and repeatable results. The Auto gas filling station supplied with instrument make the gas filling with single push thus becomes Gas Filling process much easier & saves time as well, the integrated software automates critical calculations, including: Maximum rise in temperature, Heat capacity of the calorimeter (Water Equivalent / Equivalent Value), Calorific value of the sample
All test results are automatically computed and stored in a structured summary format, enhancing ease of data analysis and record-keeping.
| Model | BCM-AC |
| Operational Principle | Isothermal |
| Fundamental Standards | BIS-1350 (Part-2), IP-12/63T |
| Inner Vessel | Electroplated Copper |
| Outer Jacket | Electroplated Copper & Water Filled |
| Combustion Bomb Valve | Pin Valve type (Schader free Design) |
| Bomb & Bucket | Removable |
| Oxygen Filling | Automatic |
| O2 Filling Time | <3 Minutes |
| Pressure Regulator | Dual gauge auto settable |
| Sensor | Double |
| Temperature Accuracy | 0.001ºC |
| R.S.D | 0.05%-0.1% on Benzoic Acid |
| Range | 1000 to 10000 Cal/g |
| Temperature Display | Digital Temperature with Timer |
| Stirrer | Low Heat Generating, Compact 12V DC |
| Bomb Firing | Auto and Manual |
| Printer Facility (Temp Vs Time) | Not Available |
| Calculation | Automatic |
| Testing Time | 10 Minutes (approx.) |
| Memory | Available |
| Operating Temperature | 15-30º C |
| Weight | 30 Kg approx. |
| Power Input & Requirement | <0.8KW, 230V+10V, 50 Hz |
