BCM-A
Product Overview

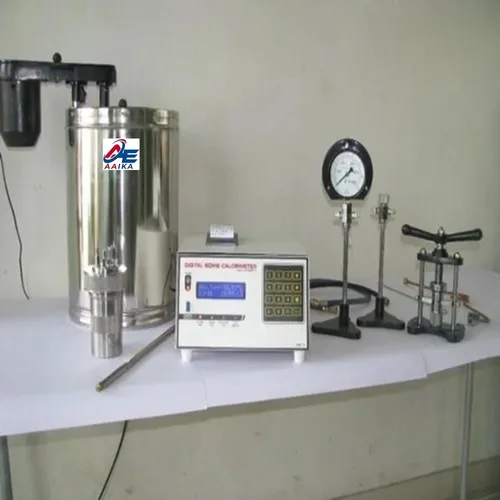

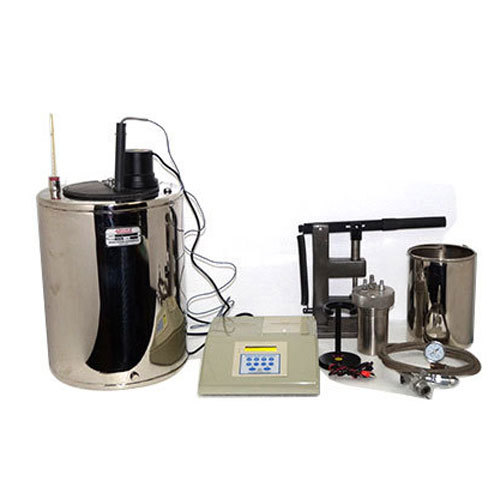

The BCM-A Digital Bomb Calorimeter is a precision instrument designed for accurate measurement of the calorific value of solid and liquid fuels. With its advanced digital system, it ensures reliable, consistent, and quick results, making it suitable for both laboratory and industrial applications.
This model is widely used in coal testing laboratories, educational institutions, and quality control environments. Its simple operation and digital interface make it an ideal choice for users seeking efficiency and accuracy.
| Model | BCM-A |
| Operational Principle | Isothermal |
| Fundamental Standards | BIS-1350 (Part-2), IP-12/63T |
| Inner Vessel | Electroplated Copper |
| Outer Jacket | Electroplated Copper & Water Filled (Puff Optional) |
| Combustion Bomb Valve | Schrader Valve type |
| Bomb & Bucket | Removable |
| Oxygen Filling | Manual |
| O2 Filling Time | <3 Minutes |
| Pressure Regulator | Manual |
| Sensor | Single |
| Temperature Accuracy | 0.01 deg C |
| R.S.D | 0.05%-0.1% on Benzoic Acid |
| Range | 1000 to 12000 Cal/g |
| Temperature Display | Digital Temperature with Timer |
| Stirrer | Low Heat Generating, Compact 12V DC |
| Bomb Firing | Manual |
| Printer Facility (Temp Vs Time) | Not Available |
| Calculation | Manual |
| Testing Time | 10 Minutes (approx.) |
| Operating Temperature | 15-30 deg C |
| Weight | 30 Kg approx. |
| Power Input & Requirement | <0.8KW, 230V+10V, 50 Hz |
