Product Overview

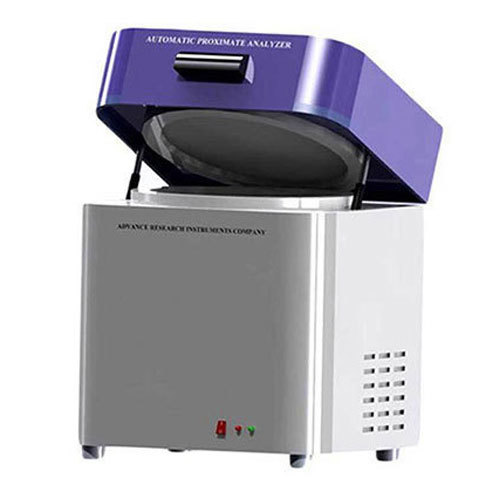

ADVANCE Fully Automatic Proximate Analyzer is based on Thermogravimetry principle for measuring Air - Dry basis Moisture, Ash, Volatile Matter & Calorific Value in Coal. Each furnace in the instrument is integrated with a high precision electronic balance.
Using Thermogravimetry principle, the system quickly, automatically and continuously test 19 samples in every experiment .the Air -Dry basis Moisture and Ash can be tested in around 150 minutes, while Volatile Matter takes around 7 minutes per sample. The system can thereafter automatically calculate the Calorific Value, Fixed Carbon and Hydrogen content of the sample.
| Proximate Analyzer Model APA | |
| Specification | Description |
| Furnace Temperatire | Up to 1000º C |
| Fundamental Standard | ASTM D-7582-15 & D-7348 |
| Temprature Stablity | 2º C |
| Sample Load | 19/38 + 1 Reference |
| Weight of Sample | 0.5g to 5g |
| Sample Size | Powdered Sample (<200Micron) |
| Weighing Balance( Built-in) Accuracy | 0.0001g |
| Weighing Atmosphere | Oxidizing & Inert |
| Gas Switching | Auto switchover as per selected program |
| Testing Time | 19/38 sample in 150min (Moisture,Ash) 7 min (VM) |
| Power Supply | 230V/50Hz, Single phase A/C |
| Power Consuption | <5KW |
| Furnace Type | Integrated |
| Weighing Range | 0.1 - 120/240g |
| samples per furnace | 19/38 + 1 Reference |
| Testing Time | As per ASTM, ISO stanards |
| Furnace Temperature Range | Ambience to 1000ºC |
| Furnace Temperature Stablity | 2% |
| Furnace Cntrol | Automatic Software cotrolled |
| Cooling Time | 1000º C - 30ºC Under 80 Mints as per Ambience Temp. |
| Heating rates | Variable (Programable) |
