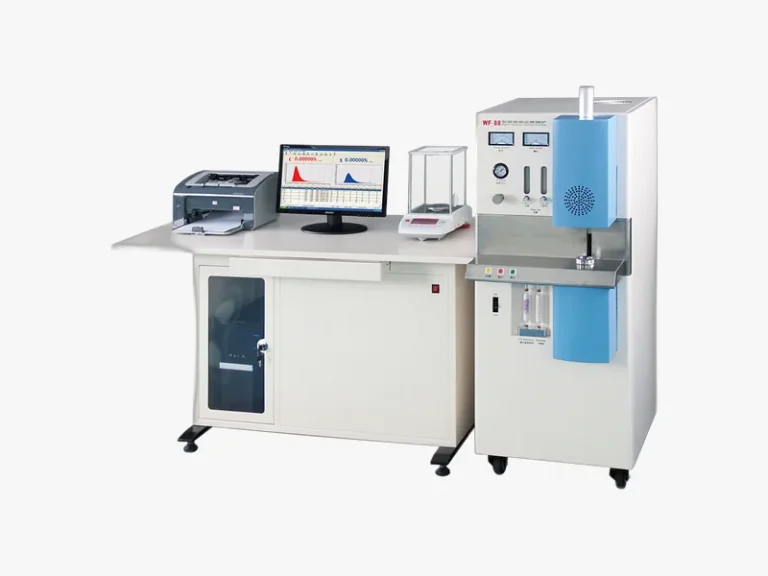

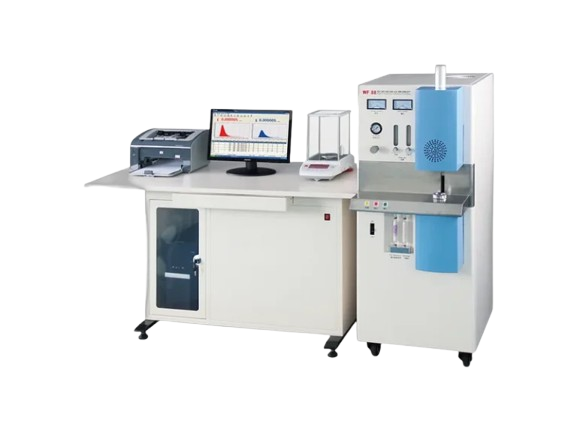

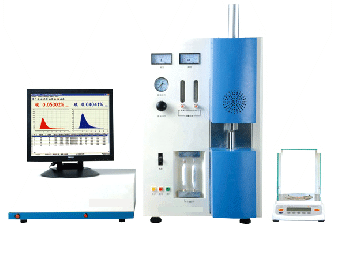

CSA-02
Infrared Carbon and Sulfur Analyzer is used in combination with WI-H86B High-speed Automatic Ignition Furnace/ High-Frequency Induction Combustion Furnace . It can rapidly and accurately conduct content determination of carbon and sulfur in materials like steel, iron, alloy, nonferrous metals, cement, minerals and catalysts, etc. This is a high-tech product that integrates optical, electrical, computer, and analytical technology into one.
It characterizes itself in having wide range of measurement, precise and reliable results of analysis and the like advantages. Due to application of computerized technology, it has so far reached the advanced level domestically in respect to intellectualization of the instrument, the screen display of images and graphs, and collection and processing of data. It can be regarded as an ideal analyzer for various sectors to determine carbon and sulfur contents.
| Models | CSA-01 | CSA-02 |
| Measuring range | Carbon ω (C) 0.001% -6.0000% (can be extended to 99.999%); Sulphur ω (S) 0.0005% -0.3500% (can be extended to 99.999%) | Carbon: 0.0001%-10.0000% (extendable to 99.9999%) Sulphur: 0.0001%-3.5000% (extendable to 99.9999%) |
| Analysis error | Carbon: better than GB/T223.69-1997 standard, Sulphur: better than GB/T223.68-1997 standard | Accuracy: Carbon confirms to the Standards ISO9556 Sulfur confirms to the Standards ISO4935 Precision: confirms National Metrological Verification Standards JJG395-97 |
| Analysis time | 25-60 seconds Adjustable, generally about 35 seconds | Adjustable at 25~60 seconds, but generally at about 35 seconds |
| Electronic Balance | Weighing range :0-300g | Weighing range: 0~120 g |
| Reading Accuracy | 0.001g | 0.0001 g |
| Work environment | Room temperature :10-30 °C | Room temperature :10-30 °C |
| Relative Humidity | less than 75% | less than 75% |
| Power | good grounding | good grounding |
| Voltage | AC220V ± 5% | AC220V ± 5% |
| Frequency | 50Hz ± 2% | 50Hz ± 2% |
