DG Pol
Product Overview

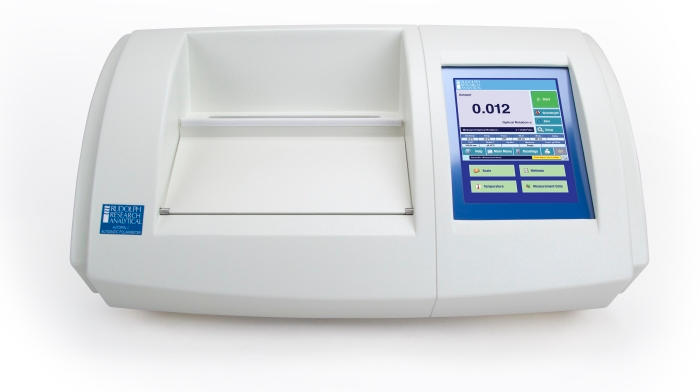

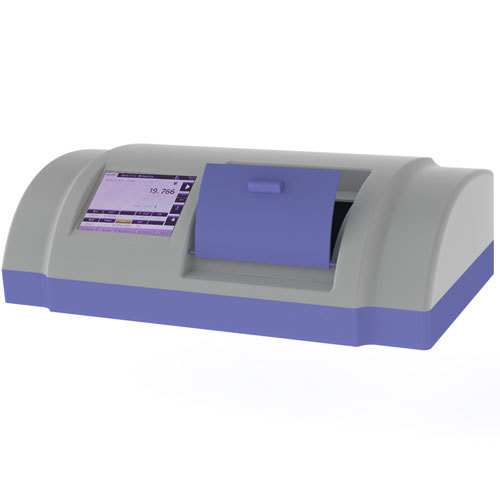

ADVANCE Digital Polarimeter combines the latest in Opto-electronic technology with over 40 years of experience in Precision Analytical Instruments to introduce for the first time in India, a locally manufactured, affordable, low cost, fully Automatic Digital Polarimeter.
The Polarimeter has all the features required for regular Quality Control, Quality Assurance and Process Control as well as for Research applications. It has all the four scales used in regular investigations namely Angular Rotation, International Sugar Scale, Specific Optical Rotation and Concentration.
| Models | Sucropol | Sucropol DG-1 |
| Angular Scale | 90 | 45 |
| Least Count (Angular Scale) | 0.001 | 0.001 |
| Repeatability (Angular Scale) | 0.01/ 0.005 | 0.01 |
| International Sugar Scale | 259 Z | 130Z |
| Least Count (Sugar Scale) | 0.001Z | 0.01Z |
| Repeatability | 0.02 Z | 0.02Z |
| Concentration | 0.999.9 gm/ml | -0-99.9g/ml |
| Least Count | 0.01mg/ml | 0.01 mg/ml |
| Accuracy | 0.1gm/ml | 0.5g/100ml |
| GLP Compliance , 21 CFR Audit Trail | Available | N/A |
| Peltier Cooling | Available | N/A |
| Temperature Resolution | 0.1C | 0.1C |
| Temperature Control Range | 10-80C | Through external water bath (Optional) |
| Temperature Control Accuracy | 0.1C | Optional |
| Minimum Transmission | 0.5% (can measure dark samples) | >1%, Dark colored samples |
| Maximum Tube length | 200 mm | 200 mm |
| Prism | Polymer polariser/ Glan Thompson Prism | Polymer polariser (standard) Glan Thompson (Optional) |
| Light Source | High Intensity Integrated LED with Improved Filter and Optical System | LED |
| Display | 8" Touch Screen Angular Rotation, Specific Rotation, Concentration, International Sugar Scale | LCD standard /Touchscreen Display (optional) |
| Calculation | Average Value, Standard Deviation of 6/10 Measurement | Average of 6 measurement |
| Optional | Software With Cable | N/A |
| Cover / Panel Construction | ABS Body | ABS Body |
| Primary Facility | Direct Print / Computer | Through Computer (optional) |
| Interface | USB & RS-232, Ethernet, VGA, Can bus | RS 232, USB, with Suitable data Cable |
| Wave Length | 589.44nm Na and Tungsten Halogen (633/578/546nm/436nm/404nm | 589.45nm |
| Data base | In-built | Optional |
| USB Port for Pen drive | Available | N/A |
| Direct Printer Connectivity | Available | N/A |
