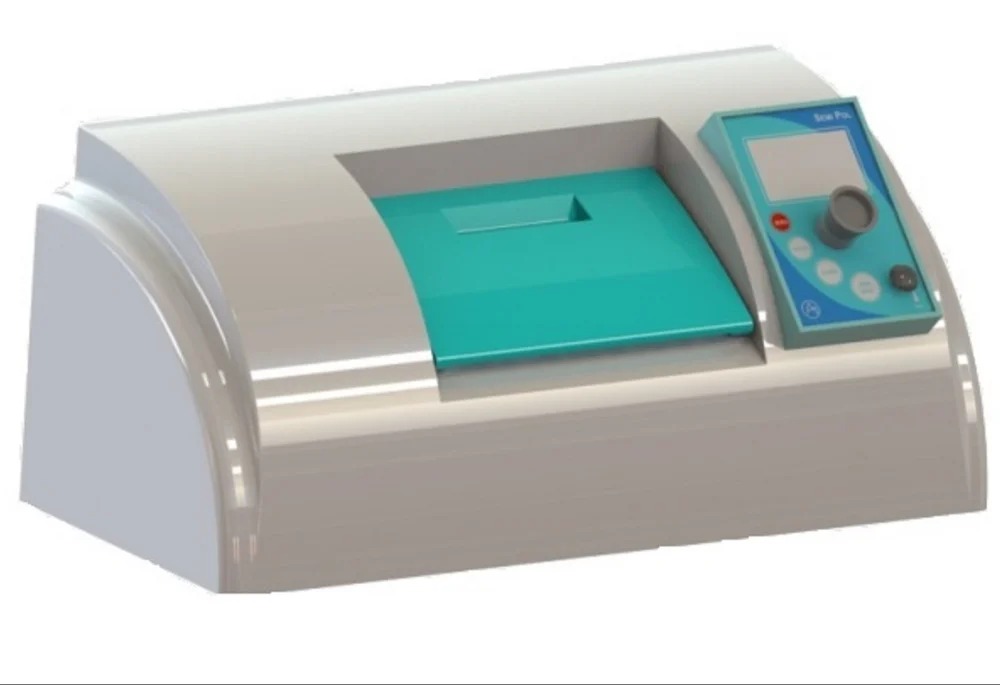

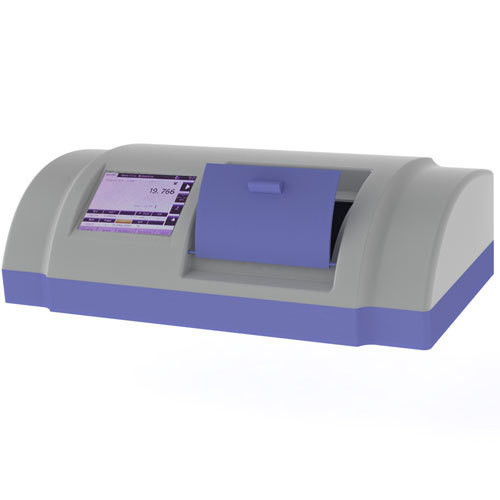

SucroPol (M)
ADVANCE Digital Polarimeter combines the latest in Opto-electronic Technology with over thirty five years of experience in Precision Analytical Instruments to introduce an affordable, low cost fully Automatic Digital Polarimeter. The Polarimeter has all the features required for regular Quality Control, Quality Assurance and Process Control as well as for Research applications. It has all the four scales used in regular investigations namely Angular Rotation, International Sugar Scale, Specific Rotation and Concentration, Functions and user defined scales . It does not required any skilled chemist to operate the instruments. It totally eliminates all confusion in Manual Polarimeters arising due to matching of Shadows & the inherent Eye to Eye variation that always occurs.
| Models | Sucropol T/Sucropol | Sucropol GLP |
| Measuring Mode | Optical Rotation, Specific Rotation, Concentration, Sugar Scale & International sugar scaleOZ(ISS). | Optical Rotation, Specific Rotation, Concentration, Sugar Scale & International sugar scaleOZ(ISS). |
| Angular Scale | ± 89.9°/±90° | ± 89.9°/±90° |
| Least Count (Angular Scale) | 0.001° | 0.001° |
| Repeatability (Angular Scale) | ±0.01°/ ±0.003° | ±0.003° |
| International Sugar Scale | ±259° Z | 259°Z |
| Repeatability | ±0.003° Z | ±0.003° Z |
| GLP Compliance , 21 CFR Audit Trail | Available | Available |
| Peltier Cooling | Available | Not Available |
| Temperature Range | 0-100°C | 0-100°C |
| Temperature Resolution | 0.1°C | 0.1°C |
| Temperature Control Range | 10-80°C | Not Available |
| Temperature Control Accuracy | ±0.1°C/±0.2°C | Not Available |
| Minimum Transmission | 0.5%/ 0.01% (can measure dark samples) | 0.5% (can measure dark samples) |
| Maximum Tube length | Up to 200 mm | Up to 200 mm |
| Prism | Polymer polariser/ Glan Thompson calcite quartz Prism (life time Guarantee) | Polymer polariser/ Glan Thompson Prism |
| Light Source | Tungsten-Halogen /High Intensity Integrated LED with Improved Filter and Optical System lifetime. | High Intensity Integrated LED with Improved Filter and Optical System lifetime. |
| Display | 8" Touch Screen, LCD Colour | 8" Touch Screen, LCD Colour |
| Displays | Angular Rotation, Specific Rotation, Concentration, International Sugar Scale | Angular Rotation, Specific Rotation, Concentration, International Sugar Scale |
| Calculation | Average Value, Standard Deviation | Average Value, Standard Deviation |
| Software | Desktop controlled Software | In-built |
| Cover / Panel Construction | ABS Body | ABS Body |
| Primary Facility | Direct Print | Direct Print |
| Interface | 3 USB & RS-232, Ethernet, VGA, Can bus Ethernet Connectivity printer and PC (Available) | 3 USB & RS-232, Ethernet, VGA, Can bus Ethernet Connectivity printer and PC (Available) |
| Optical Density | OD 4.0 (Automatic Sensitivity Control) | (OD 3.0)/(OD 2.0) |
| Wave Length | 589.44nm Na and Tungsten Halogen (633/578/546nm/436nm/405nm/365nm) | 589.44nm Na and Tungsten Halogen (880nm/(633nm/578nm/546nm/436nm/405nm/365nm) |
| Data base | 4000 Test | 4000 Test |
| Data Storage | 32 GB Internal memory with in-built computer | 32 GB Internal memory with in-built computer |
| Calibration | Automatic Calibration via touch screen | Automatic Calibration via touch screen |
| USB Port for Pen drive | Available | Available |
| Direct Printer Connectivity | Available | Available |
| Documentation | IQ, OQ, PQ & DQ Documentation | IQ, OQ, PQ & DQ Documentation |
Note: Due to process of continuous improvements, specifications are subject to change without prior notice
