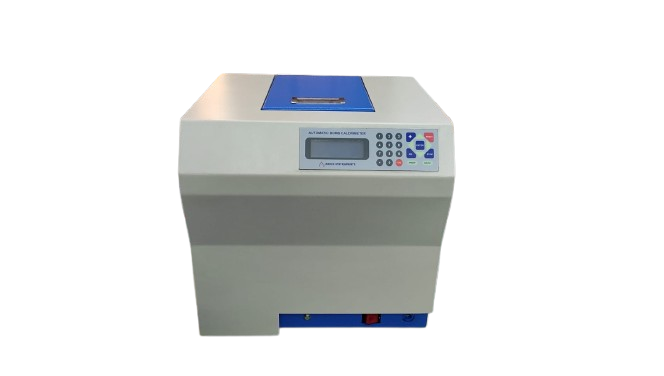

Digital Bomb Calorimeter BCM-IM
The BCM series of Bomb Calorimeter provides an accurate, simple, and cost-effective method for determining the heat of combustion, calorific value, and sulphur content of organic materials. It is suitable for testing solids, food products, animal feed, bagasse, husk, and liquid fuels such as petrol and diesel.
In operation, the sample is ignited inside a high-pressure oxygen-charged vessel. The heat generated during combustion is transferred to the surrounding water, causing a measurable rise in temperature. This temperature change is recorded with high precision and used to calculate the calorific value and heat of combustion.
Our latest innovation features an Integrated Firing Unit cum Controller, where the firing unit, high-current transformer, temperature indicator, timer, and stirrer speed control circuit are all housed within a compact cabinet. This integrated design eliminates the need for additional interfacing connections between components.
The front panel is equipped with user-friendly controls and a clear display for easy operation, while the back panel contains all necessary connectors and switches.
| Model | BCM-IM |
| Operating Principal | Isothermal |
| Compliant Standards | BIS 1350 Part -2, BS 1016-5 |
| Measurement Range | 1,000- 10,000 cal/g |
| Temperature Resolution | 0.001º C |
| Measurement Resolution | 0.1 cal/g |
| Repeatability/Precision | ≥1% (with standard Benzoic Acid) |
| Water Filling & Draining | Manual Fill with Auto Drain out |
| Gass Filling | Automatic with SingLE Push |
| Bomb Design | Pin volve type ( Scharadar Valve) |
| Operating Time per experiment | 10-12 Minutes (Main Testing Period) |
| Jacket Type | Fixed, SS |
| Vessel Type | Fixed, Electroplated Copper |
| Printer Connectivity | Provided |
| Memory | Available |
| Computer Connectivity | Optional |
| Power Input & Supply | 2.5kW, 230 V, 50 Hz |
| Weight | 30 Kg approx. |
- By using spicke correction capable of measuring of low value and by reducing weight of sample can measure higher value .
- Note: Due to process of continuous improvements, specifications are subject to change without prior notice
